40ft Collapsible Flatrack Container
Overview
Not all cargo fits inside a box — and that’s where the 40ft Collapsible Flatrack Container comes in. Built for transporting oversized, irregular, or heavy-duty equipment, this rugged container features open sides, a steel platform bed, and collapsible end walls for extreme flexibility.
Used globally for transporting machinery, pipes, vehicles, and industrial parts, this unit is ISO-certified for stacking and intermodal use — and collapses flat when not in service, optimizing depot or yard space.
Perfect For:
✅ Machinery and heavy equipment transport
✅ Pipes, steel beams, lumber, and coils
✅ Over-height or over-width cargo
✅ Military, industrial, or construction logistics
✅ Stackable yard use with collapsible ends
📐 Technical Specifications
| Feature | Detail |
|---|---|
| External Dimensions | 40′ L × 8′ W × 7’6″ H (with ends up) |
| Internal Deck Length | Approx. 39’5” usable flat space |
| Tare Weight | ~13,200 lbs |
| Max Payload | ~88,000 lbs (varies by road laws) |
| Floor | Heavy-duty steel platform |
| End Walls | Collapsible steel end frames |
| Side Walls | None (open) |
| Material | CORTEN steel construction |
| Stackable | Yes, ISO corner castings |
| Condition | One Trip or Refurbished Available |
🔧 Why Collapsible Flatracks Matter
When it comes to transporting out-of-gauge, oversized, or irregularly shaped cargo, standard shipping containers often fall short. Items like industrial machinery, long pipes, generators, construction vehicles, and steel coils don’t conform to the box-like dimensions of a standard 20ft or 40ft container — and trying to force them to fit compromises safety, efficiency, and even regulatory compliance.
That’s where the 40ft Collapsible Flatrack Container proves its worth.

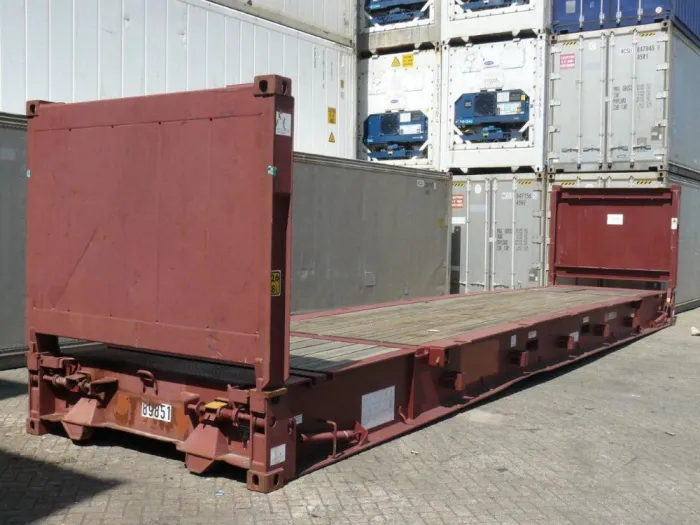

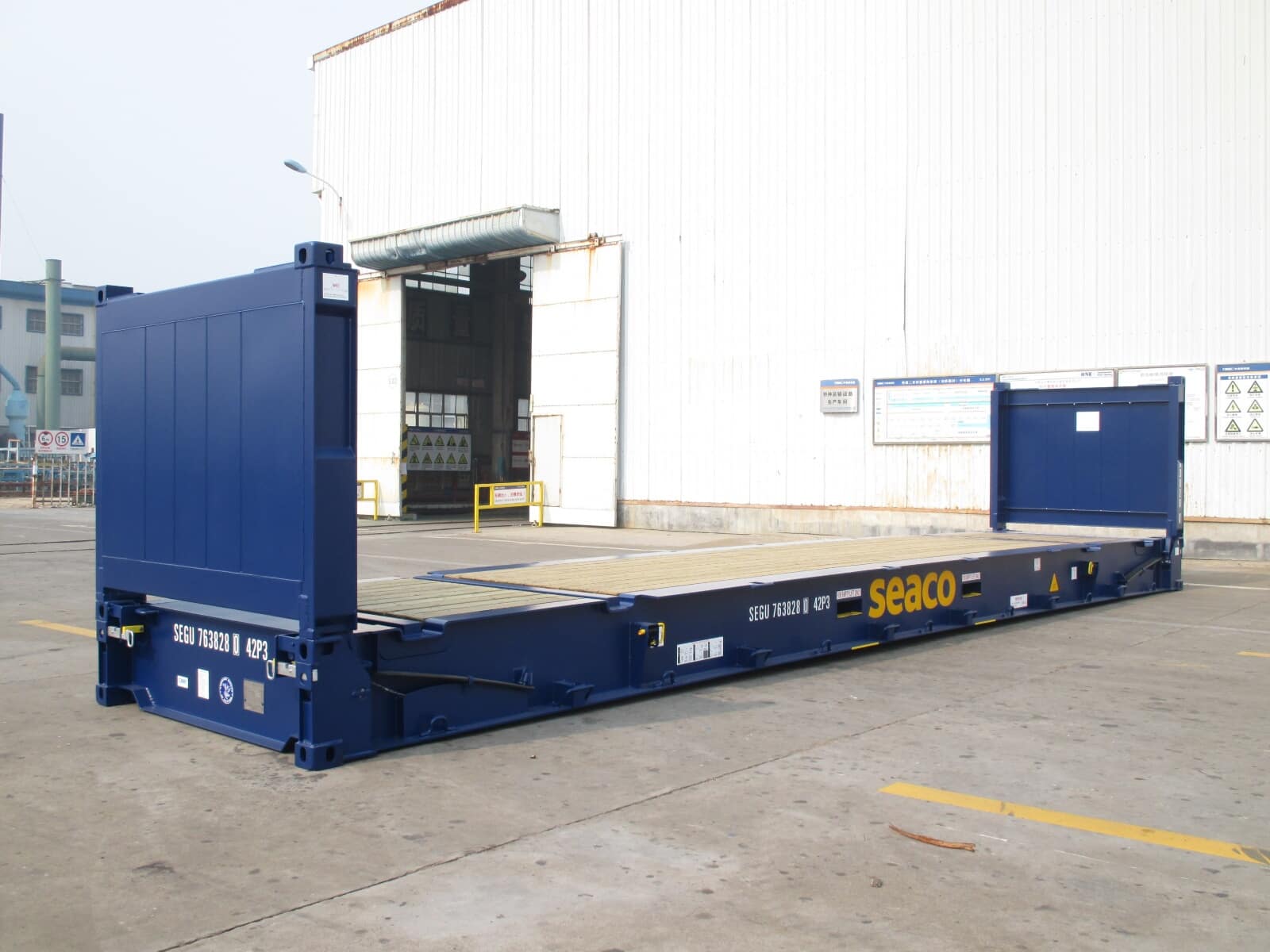

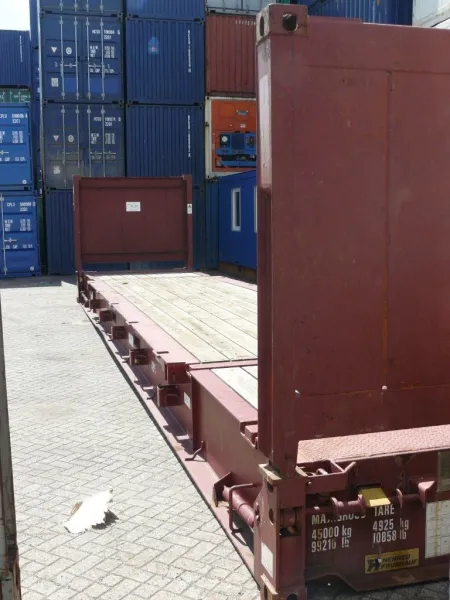

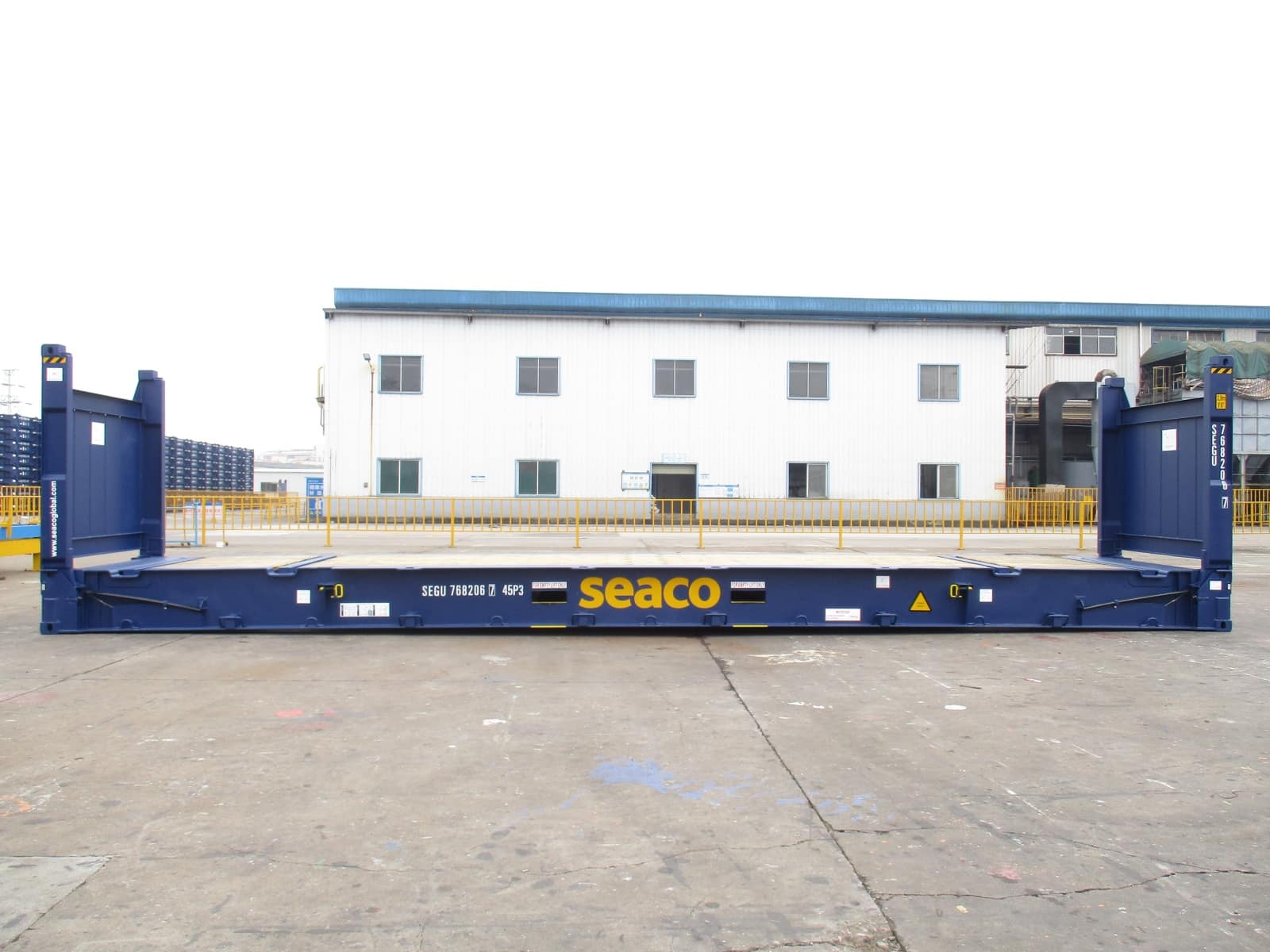

Unlike closed containers, flatracks feature a heavy-duty steel platform with open sides and top access, allowing cargo to be loaded from virtually any direction — including overhead via crane. The collapsible end walls fold down completely, creating a flat surface that can be stacked up to four or five units high when not in use, saving valuable yard space and dramatically reducing return-trip costs.
Here’s why flatracks are a game-changer for industrial logistics:
No walls. No roof. Just a reinforced base and two foldable end walls. This design allows for loading via crane, forklift, or side lift, making it the ideal platform for tall, wide, or awkwardly shaped cargo that simply won’t fit through a standard container door.
You can load vehicles, construction equipment, turbines, boats, or timber directly onto the deck without needing container clearance. The design accommodates both oversized height and width, as long as it’s securely fastened.

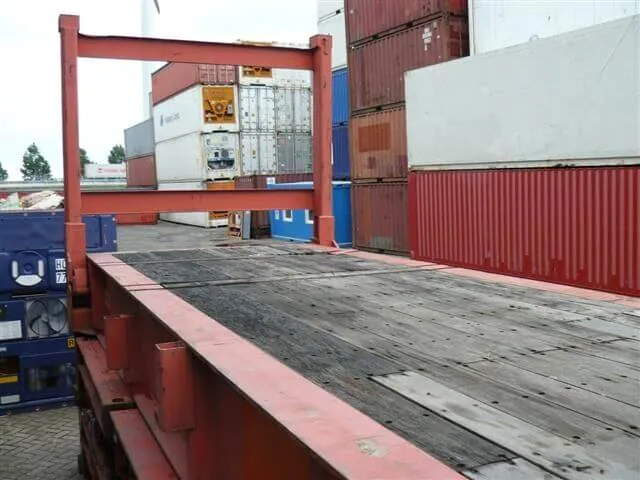

The deck of a flatrack includes multiple integrated lashing rings and D-rings, giving shippers a wide range of tie-down configurations. This ensures that even the heaviest loads — up to ~88,000 lbs — stay secure during transit.

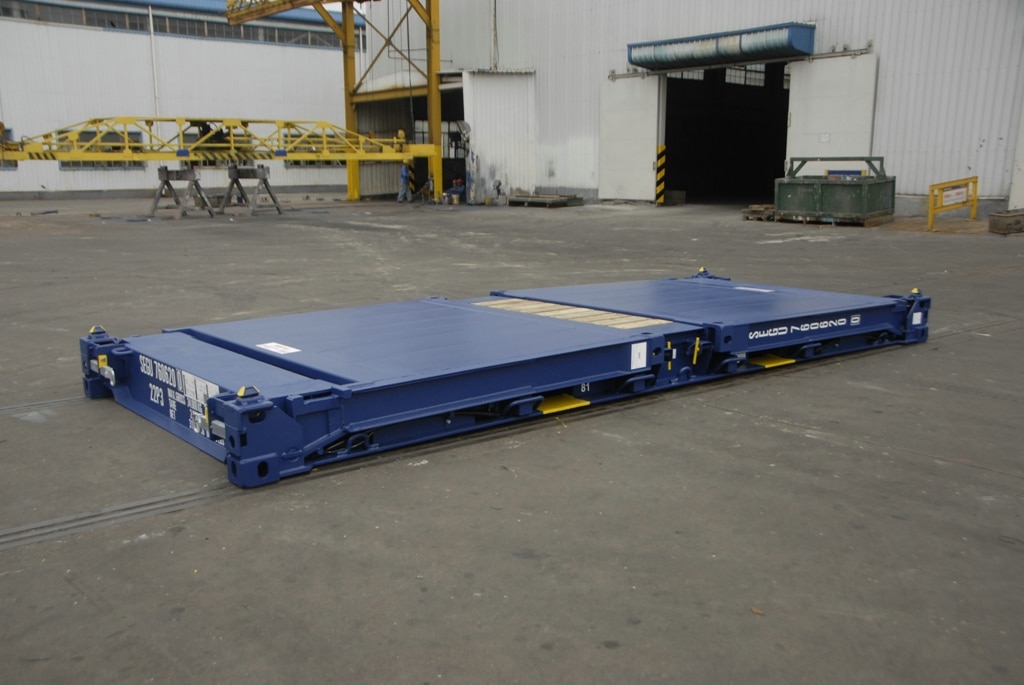

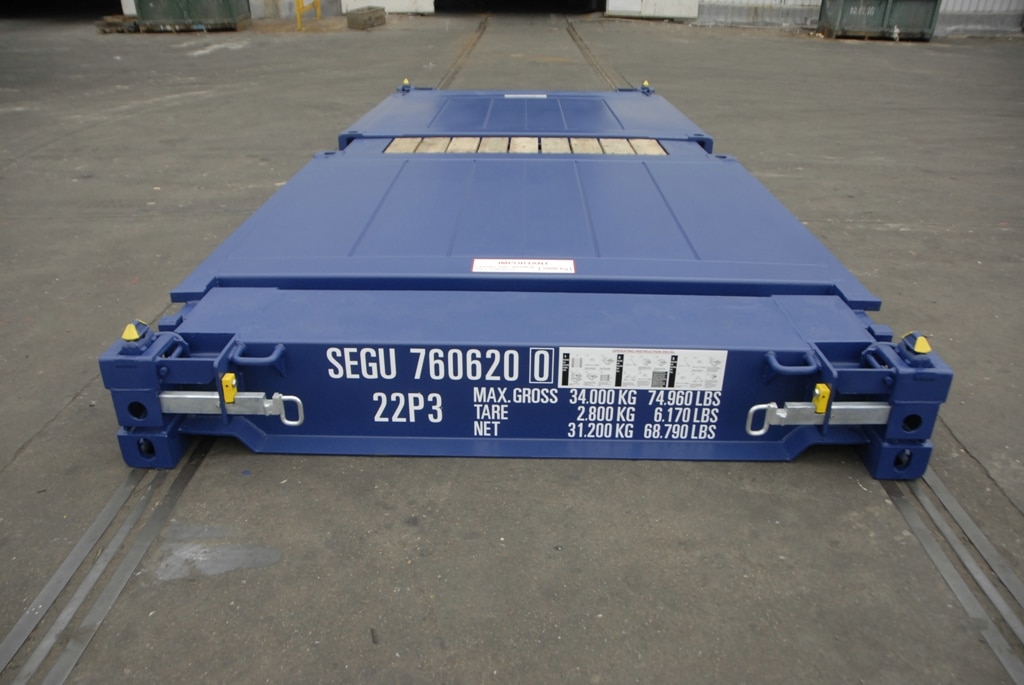

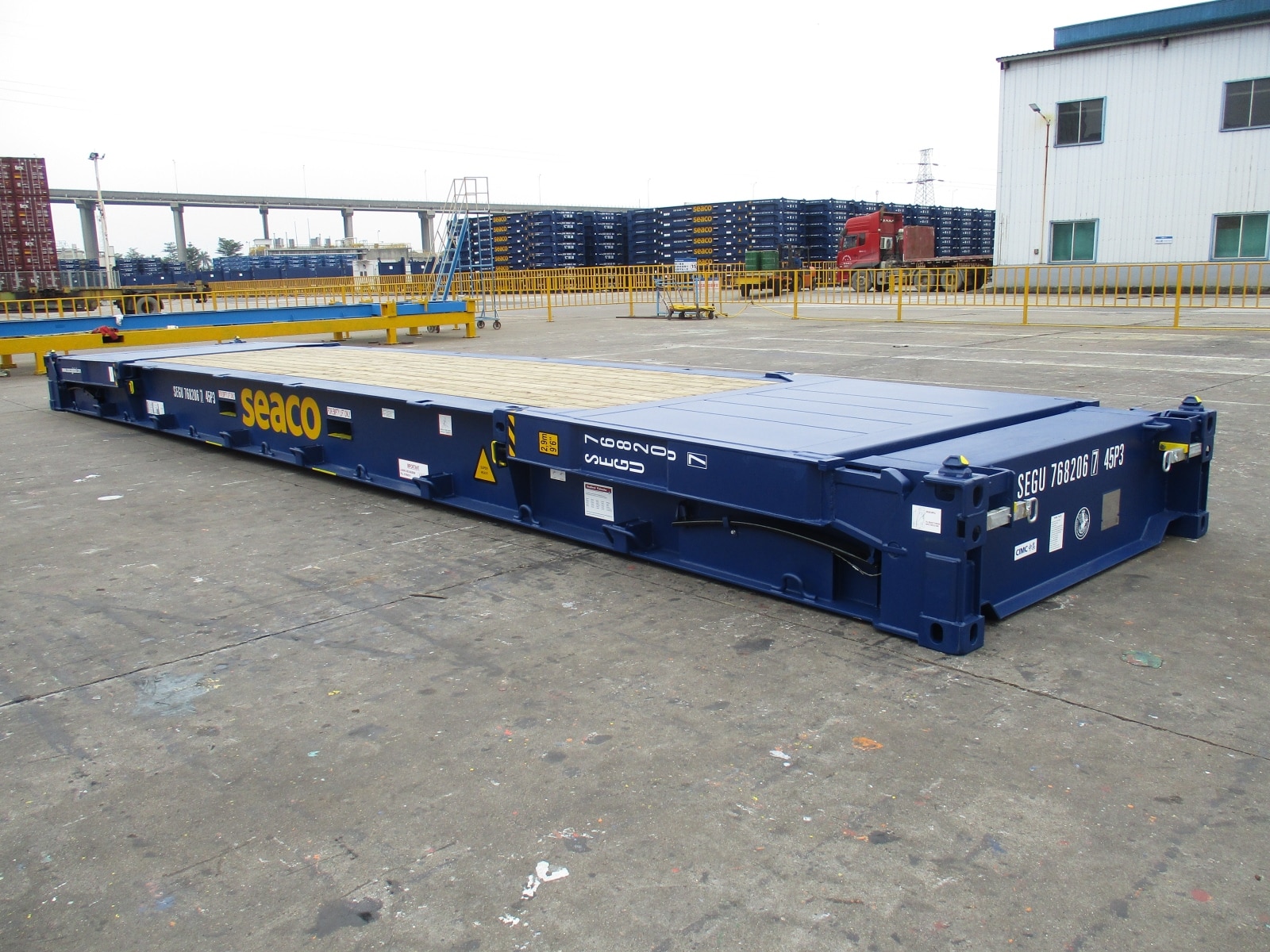

When not in use, flatracks can be collapsed flat by folding down both end frames, which makes them stackable like pancakes. Depots, yards, and shippers benefit from the ability to stack multiple collapsed units, optimizing storage and reducing repositioning and deadhead shipping expenses.
Constructed from marine-grade CORTEN steel, these containers are engineered to withstand brutal environmental conditions — from open-sea salt exposure to heavy impacts from loading. Properly maintained, a flatrack can deliver decades of reliable service.
This is why industries such as energy, mining, defense, construction, and maritime logistics rely heavily on collapsible flatracks. Whether you’re moving a backhoe across state lines or shipping industrial turbines overseas, this container offers the strength, flexibility, and cost-efficiency you need to get the job done right — without compromise.
🟩 One Trip or Refurbished – Condition Options
At 24/7 Container Inc., we understand that different projects and budgets require different solutions. That’s why our 40ft Collapsible Flatrack Containers are available in two condition tiers:
✔ One Trip Units – for those prioritizing like-new quality and long-term performance
✔ Refurbished Units – for cost-conscious buyers seeking functionality without compromising safety
One Trip flatrack containers are manufactured overseas (typically in China, Vietnam, or India) and used for a single cargo shipment to the United States. These units are then sold domestically in near-pristine condition, offering all the structural benefits of a brand-new container — without the new-build price tag.
Key Advantages:
✅ Near-new appearance – minimal dings or cosmetic wear; paint and coatings remain intact
✅ Minimal surface wear – no rust, corrosion, or weld fatigue from repeat usage
✅ Structural integrity guaranteed – all tie-downs, corner castings, and end frames remain untouched
✅ Premium resale value – easy to resell or redeploy if your project scope changes
✅ Ideal for modifications – clean slate for customization, branding, or industrial deployment
✅ Extended usable lifespan – expected to last 20–25+ years with basic maintenance
One Trip units are highly recommended for clients who need containers for long-term operational use, brand presentations, or projects that involve modification, transport, or export.
Refurbished flatrack containers offer a budget-conscious alternative without sacrificing core functionality. These units have seen more service than One Trip models but are carefully inspected, cleaned, and repaired to ensure they’re ready for continued heavy-duty use.
Key Advantages:
✅ Fully inspected and repaired – certified by technicians to meet ISO frame and safety standards
✅ Cleaned and repainted – exterior and deck are restored to ensure corrosion resistance and visual appeal
✅ Structurally tested – deck, end frames, and weld points are reinforced or replaced where needed
✅ Cost-effective – ideal for buyers focused on price, not aesthetics
✅ Excellent for static storage or one-way trips – perfect for yard loading, military drills, or jobsite staging
Refurbished units are best suited for customers who prioritize function over appearance, such as construction companies, farms, logistics firms, or industrial sites with on-site loading/offloading needs.
🧩 Where 40ft Flatracks Are Used
Collapsible flatrack containers play a vital role in heavy-duty logistics, particularly when transporting cargo that doesn’t conform to standard container dimensions. Their open-frame design makes them indispensable across a range of industries where weight, size, and shape make traditional shipping containers impractical.
These containers are engineered for extreme versatility, offering structural strength without enclosed walls — allowing cranes, forklifts, or overhead hoists to load from virtually any angle. Additionally, the collapsible end walls allow efficient return shipping or yard stacking when not in active use.
Here’s a closer look at the most common use cases:
Flatracks are a go-to solution for massive, awkwardly shaped equipment that can't fit within standard ISO dimensions. Heavy-duty gear like excavators, cranes, turbines, or industrial generators can be securely lashed onto the steel platform, offering safe, compliant international or domestic shipment.
Industries like construction and oil & gas frequently transport steel beams, PVC pipes, copper rods, and rebar that stretch beyond traditional container dimensions. With no side walls to obstruct loading or offloading, flatracks provide a secure base with robust tie-down points to prevent movement during transit.
Vehicles such as military trucks, tractors, forklifts, or large trailers often exceed height or width limitations. 40ft flatracks allow full wheelbase support while enabling open-top loading and side-tie lashing — a requirement for regulatory and insurance compliance on both rail and ocean routes.
Some operations prefer pre-loading equipment or materials onto flatracks for rapid mobilization. With collapsible ends, these units can be stacked in sets when idle — optimizing depot or yard space. This is especially useful for military bases, construction companies, and equipment leasing firms managing large fleets.
In scenarios where cargo must be loaded by crane or boom lift from the top or side — such as with prefabricated panels, modular tanks, or framed assemblies — flatracks offer the only container solution with unrestricted overhead access and a stable deck for securing the load.
📍 Nationwide Delivery – From Our Yard to Your Dock
We serve all 48 contiguous states via our strategically located depots. Whether it’s for a commercial terminal, rural site, or secure facility, we handle delivery with precision.
| Region | Estimated Delivery Time | Depot Zones & Notes |
|---|---|---|
| East Coast | 5–7 business days | NY, NJ, FL, PA – East port proximity |
| Midwest | 6–8 business days | IL, OH, MO hubs with industrial dispatch |
| West Coast | 5–10 business days | CA, AZ, WA – Rail and sea hub coverage |
⏱️ Average time from quote to delivery: ~7 business days
📍 Depot origin and drop-off details confirmed during quoting
🚚 Delivery Options – Engineered for Heavy Loads
Delivering a 40ft Collapsible Flatrack Container requires more than just a truck — it demands thoughtful coordination, weight-rated equipment, and ground-level expertise. Unlike enclosed shipping containers, flatracks lack sidewalls and fixed roof structures, meaning that standard tilt-bed delivery options aren’t viable in most situations.
We tailor delivery methods based on your site’s physical setup, offloading capabilities, and the container’s condition and weight.
This is the most common and efficient method for transporting collapsible flatracks. Containers are secured on a flatbed trailer and shipped directly to your job site, storage yard, or terminal. Customer-provided equipment (forklift, crane, or telehandler) is required to safely offload the unit on arrival.
- Best for customers with existing heavy-lift equipment
- Minimizes delivery cost by reducing driver wait time
- Flexible for commercial, industrial, and port-based drop sites
For job sites with restricted access, vertical placement needs, or where the customer does not have suitable offloading equipment, we offer crane-assisted delivery. This service uses specialized rigging to lift and position the flatrack container with precision.
- Ideal for congested urban areas, rooftop placements, or narrow lots
- Additional fee applies based on rigging complexity and duration
- Pre-delivery site assessment required
Due to the open-frame and heavy steel platform design, flatrack containers cannot be delivered using tilt-bed or roll-off trucks. These trucks rely on container rigidity and fixed walls to slide safely — which flatracks do not possess. Attempting tilt delivery on a flatrack would risk damage to the unit, truck, or job site.
📌 Site Requirements for Safe Delivery – What You Need to Know
To ensure a safe and efficient delivery of your 40ft Collapsible Flatrack Container, your site must meet certain physical and logistical requirements. Please review the criteria below to avoid delays, rescheduling fees, or offload complications:
- The delivery surface must be firm, level, and rated to support up to 20,000+ lbs during offload.
- Preferred surfaces include concrete, compacted gravel, asphalt, or reinforced dirt.
- Avoid mud, loose sand, or grassy terrain — these may cause equipment to sink or become unstable.
- If receiving via flatbed trailer, you must have on-site equipment capable of lifting and moving 13,000+ lb steel containers.
- Forklift with sufficient load capacity
- Crane with certified rigging operators
- Telehandler or reach stacker for yard environments
- If you do not have equipment, opt for crane-assisted delivery (available upon request).
- Minimum clearance width: 12 feet (container width + maneuvering space)
- Minimum overhead clearance: 14 feet (accounting for truck height and crane booms)
- Entry roads must accommodate a 53-foot flatbed or crane truck, including turn radius and approach angle
- Site must be accessible during daylight delivery hours and not obstructed by power lines, tree branches, or debris
💰 Pricing
| Condition | Price Range (40ft Collapsible Flatrack) |
|---|---|
| One Trip | $7,000 – $8,000 |
| Refurbished | $5,800 – $6,800 |
💡 Final price determined by condition, location, depot availability, and current market demand. Quotes valid for 72 hours.
🧾 What’s Included – Complete Transparency, No Guesswork
Every purchase from 24/7 Container Inc. includes more than just a steel frame — it includes a complete logistics experience designed to make your transaction smooth, informed, and risk-free. When you purchase a 40ft Collapsible Flatrack Container, you receive:
Your core product — a rugged, ISO-compliant container suitable for transporting or storing oversized cargo. Choose from One Trip (like-new) or Refurbished based on availability and your project needs. Each unit is inspected prior to shipment to ensure it meets structural and cosmetic quality expectations.
Need assurance before delivery? We offer a detailed Condition Report, including images, inspection notes, and cosmetic condition (if applicable). This helps businesses and government agencies meet internal purchasing standards before the container ever arrives on-site.
We don’t just drop your container and walk away. Our logistics team will coordinate a delivery time and method that suits your site requirements, access limitations, and equipment availability. From selecting the right truck type (flatbed or crane-assist) to providing estimated delivery windows, we stay in contact from quote to offload.
Questions about weight limits? Delivery access? Modification options? You’ll have access to our responsive support specialists who can guide you before and after the sale. We're available by phone, email, or web support portal — no auto-responders or ghosting.
Many clients require more than just the base frame. We can outfit your flatrack with a range of add-on features, including:
- Welding modifications (e.g., extra D-rings or mounts)
- Branding decals or numbering for fleet management
- Rust-proof coatings or military-grade sealants
- Tie-down kits and anchor reinforcements
- Deck surfacing options for specialized cargo
All modifications are quoted transparently and executed by experienced fabrication teams prior to dispatch.
🛡️ Warranty & Quality Assurance – Confidence in Every Container
At 24/7 Container Inc., we don’t just deliver steel — we deliver peace of mind. Every 40ft Collapsible Flatrack Container, whether a One Trip unit or a professionally refurbished model, comes with our industry-trusted 24-Month Limited Warranty designed to protect your investment long after delivery.
This warranty reinforces our commitment to quality, accountability, and long-term performance. You’re not just buying a container — you’re entering a support-backed relationship with professionals who stand behind their equipment.
✅ What’s Covered Under the 24-Month Limited Warranty:
Covers the primary structural steel components — including the base platform, corner castings, and load-bearing beams. Any bending, warping, or compromise resulting from manufacturer defects or transit damage is fully covered.
Includes welding along the deck, end walls, and tie-down mechanisms. Any weld failures that impact safe use of the flatrack under normal conditions will be addressed via repair, replacement, or refund options.
Ensures the container meets ISO standards for compatibility with crane handling, rail, truck, and sea transport. If a container arrives with misalignment or non-compliance with standard intermodal hardware (e.g., corner casting failure), it’s covered.
Guarantees the proper folding, locking, and securing of the end walls during upright and collapsed use. Any malfunction due to internal hinge defects, locking pin alignment, or manufacturing inconsistencies is protected.
Upon arrival, your container will be visually and physically inspected by the delivery operator. We encourage all customers to take photos or video of the unit at the time of delivery — especially if forklift, crane, or flatbed offloading is involved.
This inspection ensures your container arrives:
- As described in the order
- In visibly undamaged condition
- With fully operable end walls and tie-down points
Should any discrepancy or concern arise, documenting the container upon delivery greatly expedites warranty processing.
To maintain full eligibility for warranty coverage:
- Claims must be submitted within 60 calendar days of delivery.
- Include supporting photos or videos showing the issue.
- Provide your order number and delivery date.
You can reach our warranty department directly by email or phone. Our team typically resolves claims within 3–5 business days after documentation is received.
To maintain fair and transparent policies, the following are not covered under the limited warranty:
- Damage due to improper handling or offloading after delivery
- Modifications made after sale (e.g., welding, cutting, repainting)
- Surface-level cosmetic rust or wear from depot storage
- Damage from natural disasters or weather post-delivery
- Use outside ISO-certified transport/load conditions
⚙️ Optional Modifications
Custom enhancements available upon request:
- Reinforced tie-down D-rings
- Branding decals or container numbering
- Anti-slip surface coating for deck
- Corner posts or rails for stacking
- Rust-inhibiting paint & military-grade sealants
